Miniature NTC Thermistor Medical temperature sensor CE approval

Product description

The item is one miniature NTC thermistor medical temperature sensor CE approval. The miniature NTC thermistors are encapsulated with epoxy in polyimide tubes with polyesterimide insulated #38 AWG solid nickel wire leads. They feature paralell bonding and come in standard overall lengths of 3, 6 and 12 inches. These thermistor probes are ideal for use with small probe housing and applications that require fast thermal response time.

Engineering Information

Typical diameter 0.023 inches

Typical wire size #38 AWG

Leads: solid nickel, polyesterimide insulation

Materials: epoxy, polyimide

Typical Dissipation Constant: 0.2mW/℃ in still air

Typical time Constant in still air: 3 seconds max

Resistance / temperature characteristics

Reliability data

Connection method

The lead wire can be soldered to larger wires by winding it around the larger wire and then soldering.

Caution

The miniature NTC thermistor sensor probe is manufactured using a semiconductor process. Due to its microstructure the sensor is sensitive to

electrostatic discharge in just the same way as common integrated circuits are.

In order to prevent damage to or failure of the sensor recommends to take appropriate precautions against when handling it.

Failure to protect the sensor against ESD may also cause damage to the equipment installed with the sensor, because electrostatic discharge can cause small parametric changes, which means that the sensor may not meet its published specification.

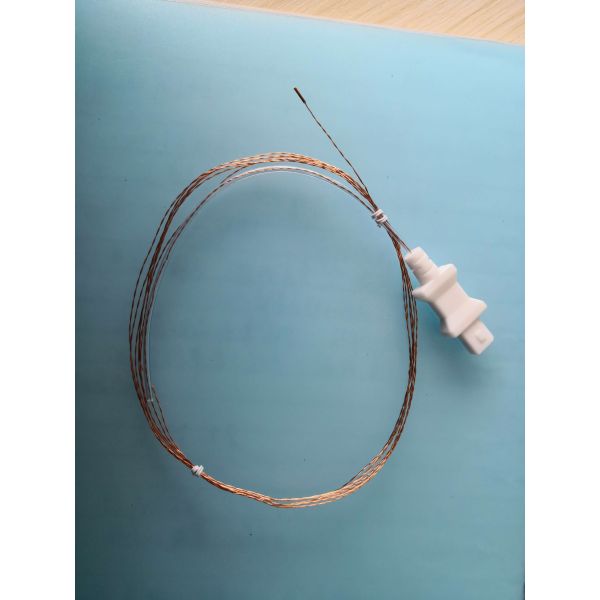

Product image

Hefei Jingpu Sensor Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production, and sales of thermistors and temperature sensors which was established in 2014 and obtained IS09001 Certification in 2015, IS013485 Certification in 2018, CE Certification for medical products in 2019, and Medical Device License and Registration Certificate in 2020.

Our products include various epoxy-encapsulated and glass-encapsulated thermistors and various shell-encapsulated temperature sensors that are widely used in the medical industry (such as monitors, medical equipment, bacterial incubators, medical refrigerators, etc.), smart wearable devices, automobiles (such as water temperature, oil temperature, air conditioner, filter, intake pressure temperature, steering wheel, rearview mirror, tyre, battery pack, etc.), home appliances (such as air conditioner, refrigerator, electric water heater, induction cooker, electronic calendar, etc.), portable power bank, fire alarm, meteorology, ocean, etc.)
